Product Description
Compactor Diapers and Packer Panels for Trash Compactor Boxes

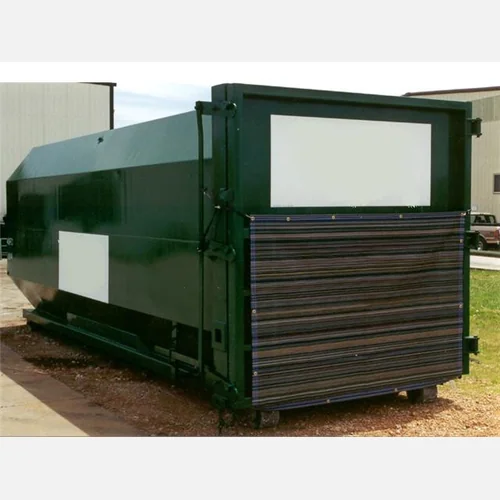

DeBrovys packer panels—also called compactor diapers—cover the rear opening of a trash compactor box. Choose the finished panel size first, then select either multicolor mesh or solid black 18 oz. vinyl-coated polyester in the separate dropdowns above. The available combinations are 5 ft × 7 ft or 6 ft × 8 ft in either material. These are finished, grommeted panels, not fabric sold by the yard or a complete compactor system.
Use a mesh panel when the application benefits from airflow and an open weave; choose the solid vinyl-coated polyester option when you need a waterproof fabric surface rather than open mesh. A solid fabric does not by itself make the installed compactor opening leakproof: attachment, overlap, edge sealing, and the condition of the equipment still matter. Measure the actual opening and fastening points before ordering, especially when replacing an older panel that has stretched or been modified.
Choose the Correct Size, Material, and Part Number
Both product options are dropdown selects: one for panel size and one for material. The four current store variants are listed below so fleet buyers can match a replacement by configuration and SKU. Check the live option selections for current pricing and availability.
| Finished size | Material | SKU |
|---|---|---|
| 5 ft × 7 ft | Multicolor mesh | 25-82 |
| 6 ft × 8 ft | Multicolor mesh | 25-83 |
| 5 ft × 7 ft | 18 oz. black vinyl-coated polyester | 25-84 |
| 6 ft × 8 ft | 18 oz. black vinyl-coated polyester | 25-85 |
Each of these four catalog configurations is listed without a pocket and with a hem and grommets on all four sides. The size names identify the offered panel dimensions; they do not guarantee a fit for every compactor make or door. Verify the needed coverage area, edge overlap, attachment spacing, and operating clearance before choosing a size. If your equipment needs a different finished size or hardware layout, request a custom-fabrication review rather than assuming the dropdown includes it.
Multicolor Mesh Versus Solid Black Vinyl
Multicolor mesh: The current DeBrovys product description and material guide identify this as a 14 × 14 woven mesh with 1,000-denier yarns. In weave terminology, 14 × 14 describes the warp and fill yarn counts; denier describes yarn linear mass, not an independent tear-strength test. The open construction allows some air and light to pass through. It is not waterproof and should not be described as a liquid barrier. Its multicolor appearance is a characteristic of the available mesh fabric, not a separate color dropdown.
18 oz. black vinyl-coated polyester: This is the solid, waterproof fabric option listed for the two panel sizes. The 18 oz. designation refers to material weight, not to the size or shipping weight of a finished panel. The coating covers the weave and is appropriate to consider when open mesh will not provide the fabric-level weather coverage sought by the buyer. Grommet holes, hems, gaps, mounting hardware, and the compactor structure are separate from the waterproof fabric itself; do not treat the assembled installation as a sealed containment system without a site-specific assessment.
Material selection should begin with the load, the opening, how often the panel is removed, and whether airflow or a solid face matters more. Do not substitute a solid cover for a mesh cover—or the other way around—based on size alone. For other hauling and waste-covering applications, browse DeBrovys Waste Industry Tarps and the broader Solid Waste Tarps collection.
Hem, Grommet, and Pocket Details to Check
The compactor diaper guide lists a hem and grommets on each of the four edges and no sewn-in pocket for these configurations. DeBrovys' current product copy describes brass spur grommets and a triple-rolled hem approximately 1½ inches wide. Before ordering, compare the actual number and position of attachment points on the existing panel with the proposed replacement; grommeted edges can differ from the fastening pattern used on a particular container or door.
Do not assume a sewn-in webbing strip is part of these panel hems. The existing product description says these panels do not have webbing sewn into the hem, while general tarp-construction statements elsewhere can describe other products. If reinforced webbing, a special hem, a new grommet spacing, or an unusual fastening method is required for your site, include those requirements in a custom quote request so construction can be confirmed before manufacture.
When inspecting an old panel, look for wear around the grommets, pulled corners, edge abrasion, and material damage where it meets the compactor frame. Replacing only the fabric without addressing a sharp edge or misaligned fastener may shorten the life of the new panel. Installation and containment requirements vary; follow your equipment manufacturer's instructions and applicable operating procedures.
Measure the Compactor Opening Before Ordering
- Record the opening: measure the actual area that needs coverage, plus the overlap needed for your fastening arrangement. Compare those measurements with the listed 5 ft × 7 ft and 6 ft × 8 ft finished-panel choices.
- Check mounting points: count and photograph the fasteners on all four edges. The offered panels have grommets around their hems, but a particular site's spacing and tensioning method must still be checked.
- Choose the fabric: determine whether airflow through multicolor mesh is suitable, or whether the application requires a solid black vinyl-coated fabric face. Neither choice alone certifies regulatory compliance for a load.
- Confirm clearances: check moving doors, hinges, the receiver opening, and any equipment that could catch the hem or corner under operation.
- Identify exceptions: document a required non-standard size, edge treatment, extra reinforcement, or other hardware placement before requesting custom fabrication.
These details matter more than a nominal box label. For general material and sizing considerations, read the DeBrovys tarp-selection guide; for the broader waste-industry lineup, see the Waste Industry Tarp Solutions overview. The guides are background reading; use the dropdowns above to order the four verified configurations on this product page.
Ordering, Fabrication, and Application Notes
This page presents one configurable DeBrovys product with two independent attributes: size and material. Selecting 5 ft × 7 ft mesh corresponds to SKU 25-82, 6 ft × 8 ft mesh to 25-83, 5 ft × 7 ft black vinyl to 25-84, and 6 ft × 8 ft black vinyl to 25-85. Choose both dropdown values before adding to cart, and review the current displayed price for that exact combination. Do not infer a single universal price from the starting price shown before selection.
If your compactor setup falls outside these four combinations, share finished dimensions, current panel photos, the intended cargo and exposure, and the edge-attachment pattern when requesting a custom-fabrication discussion. DeBrovys can evaluate whether an alternative size, material, or reinforced construction is available; nonstandard builds are not implied to be stock variants. If a separate job calls for joined, heat-sealed panels, confirm material compatibility and the fabrication method with DeBrovys rather than assuming heat sealing applies to this grommeted mesh or vinyl panel.
Frequently Asked Questions About Compactor Diapers
What is a packer panel or compactor diaper?
It is a removable panel used to cover the rear opening of a trash compactor box. This product page offers finished panels in two sizes and two material choices; it does not include a complete compactor, mounting system, or raw fabric sold by the yard.
Which sizes and materials can I select?
The size dropdown offers 5 ft × 7 ft and 6 ft × 8 ft. The separate material dropdown offers multicolor mesh and solid black 18 oz. vinyl-coated polyester. The four SKU combinations are shown in the table above.
Are the multicolor mesh panels waterproof?
No. Mesh allows airflow through openings in the weave. If you need a solid waterproof fabric face, consider the 18 oz. black vinyl option, then assess the installation separately because a grommeted panel does not itself seal the entire compactor opening.
Do these panels have pockets or grommets?
The four documented configurations have no pocket. They have a hem and grommets on all four sides. Confirm that the attachment layout suits your equipment before ordering.
Can I request a non-standard size or construction?
Ask DeBrovys to review the measured finished dimensions, material choice, photos of the existing panel, and any special hem, grommet, or reinforcement requirements. A custom option requires confirmation and is not one of the four standard dropdown combinations.
Select the Right Compactor Panel for Your Equipment
Start with the opening and edge-attachment measurements, then select the matching size and choose between breathable multicolor mesh and solid black 18 oz. vinyl-coated polyester. Review the SKU and live price for that exact variant before checkout. If the listed dimensions or mounting pattern do not match your existing panel, request a fit and fabrication review instead of assuming a standard panel will fit.
